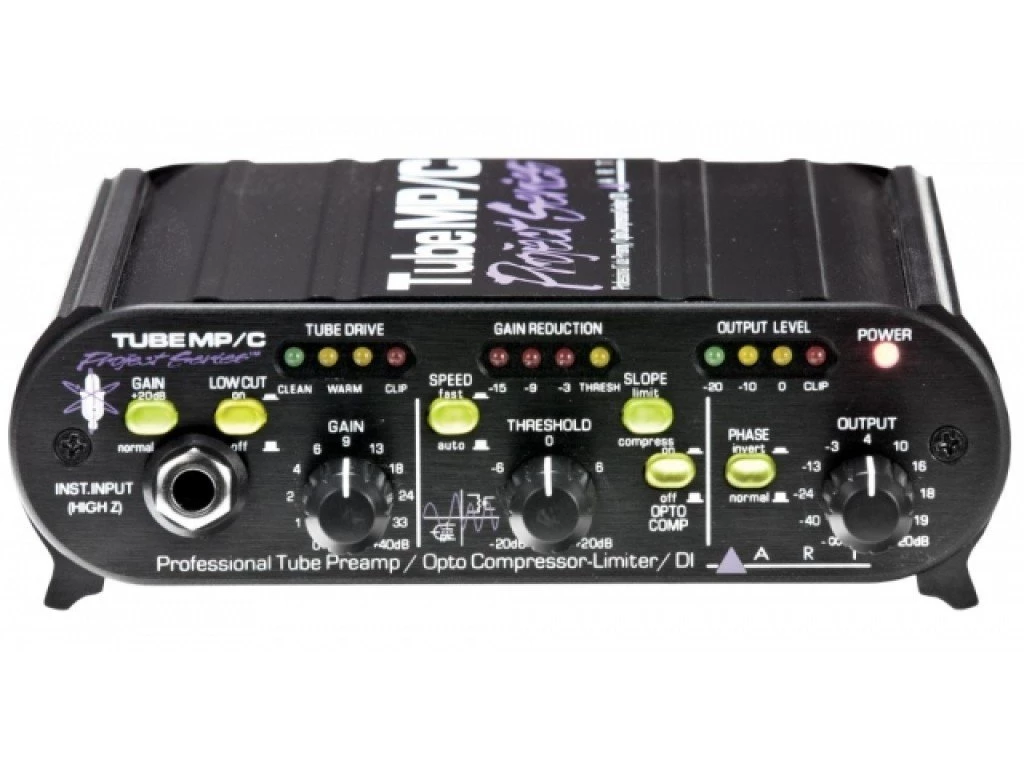

ART Tube MP/C
Tube Preamp, Optischer Kompressor
CHF 175.00
Sur commande
Beschreibung
Der TubeMP/C ist ein Mic/Line/Instrumentenvorverstärker mit Röhre (12AX7a), der das Signal vor einem Mischpult oder Aufnahmesystem verbessert. Mit einem optischen Kompressor und der Vactrol-Technologie, die eine transparentere und neutralere Kompression liefert, kann er auch als DI verwendet werden.
CMMR: > 60 dB @ max. Verstärkung
Äquivalenter Eingangslärm: -128dBu typisch („A“ wtd.., Shorted XLR balanced input, gain @ max)Frequency Response: 30 Hz – 60 kHz /- 1 dB balanced output, 20 Hz – 60 kHz /- 1dB 1/4″ outputInput Impedance: 1M Ohms 1/4″ input, 5K Ohms XLR inputInput/Output ConnectionsInput: XLR balanced or 1/4″ balanced.Output: 1/4″ unbalanced XLR balanced, transformer isolated.Maximum Gain: 80 dB (balanced in-out, 64dB (unbalanced input, balanced output)Maximum Input Level: unbalanced (Inst): 15 dBu, balancd (mic): 10 dBuMaximum Output Level: 19 dBu (Line mode)Output Impedance XLR: <600 Ohm, 1/4″: <300 OhmLow Cut Filter: -3 dB @ 70 Hz, 6dB/OktavePhantom Power: Selectable Switch, 48Volts DC, filtered, current limitedChassis Type: All aluminum black anodized with integral rubber sidesPower Requirements: 9VAC @ 1000mA (external)Attack Time: <1 ms (limit), 20 ms (comp.)Release Time: 150ms (fast), 20ms – 3s Program dependant (Auto)Total Harmonic Distortion: <0.1% @ max gainTube Type: Hand selected 12AX7aCompressor Slope: 2:1 (Comp.) / 11:1 (Limit)Dimensions: 1.75 „H x 5.9″ W x 6.5“ D (44.5mm x 150mm x 165mm)Weight: 2.9 lbs (1.32 kg)Notes: 0dBu = 0.775V rmsWeight includes power supply and packaging
Lieferung per Priority Post

Herstellergarantie
