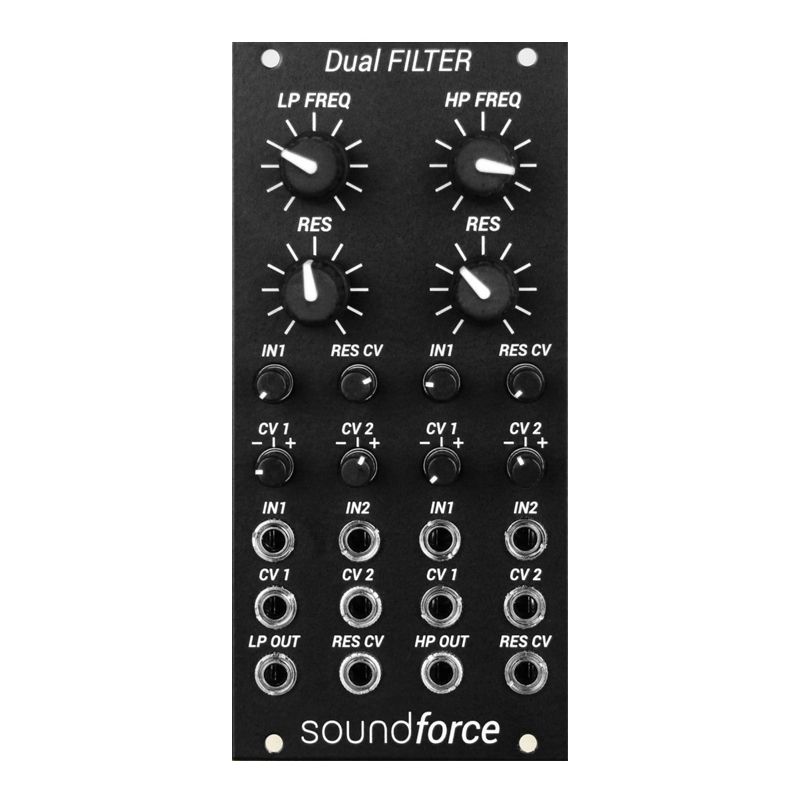

SoundForce – Dual Filter    Dual LP / HP Stereo Filter
The SoundForce Dual Filter is a 2-stage cascaded OTA design based on the late MS-20. The design has been fine-tuned with extended resonance control as well as a resonance CV input. Each filter can be either a 12dB/oct low-pass or 6dB/oct high-pass. To keep the module HPs on the low side, the filter mode setting is located on the back of the module. The module was designed to be a very affordable full-featured modern filter.
Highly efficient design:
This design attracted me very particularly due to its beautiful simplicity. With only 2 poles, it uses a total of 3 OTA ICs and 4 OP-AMP ICs for both filters even with the added resonance voltage control. Early on, efficiency and part counts were a focus during testing and development. In combination with automated manufacturing and a very short supply chain, the module has a very high quality standard at a very affordable price. The module uses only A-brand ICs and passive and no costs were cut during purchasing.
