a snappy voltage-controlled analog envelope generator with a built-in CV processor
for scaling, inverting, and voltage-controlled deviating of the envelope shape. The 24000 generates an envelope made of the four classic segments: Attack, Decay, Sustain, and Release, in which each segment can be manually set using knobs or dynamically set under voltage control
Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs’ rotation is dedicated to high-resolution adjustment in t:he millisecond range; this allows for a fine adjustments that reduce clicks and pops to a minimum with the lowest possible delay and loss in snappiness. Conversely, the rotation of the knobs from 50% to 100% provide envelopes that can last anywhere from several minutes to infinity.
The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.
The Attack slope switch allows selection of a logarithmic or exponential curve for the Attack segment; this subtle effect helps further the fine adjustment of the Attack segment slope. A shoot button is provided to let you ﬁre the enevlope manually. The Z-4000 also provides a retrigger input allowing you to create legato notes when using a classic keyboard interface.
Going down to nuts and bolts, the Z4000’s smoothness and snappiness is made possible by a four-segment active-charge discrete circuit which is an extended version of circuits found in classic two-segment rise/fall transient generators.
The Z4000’s feature set in just 8HP: a Tiptop envelope generator.

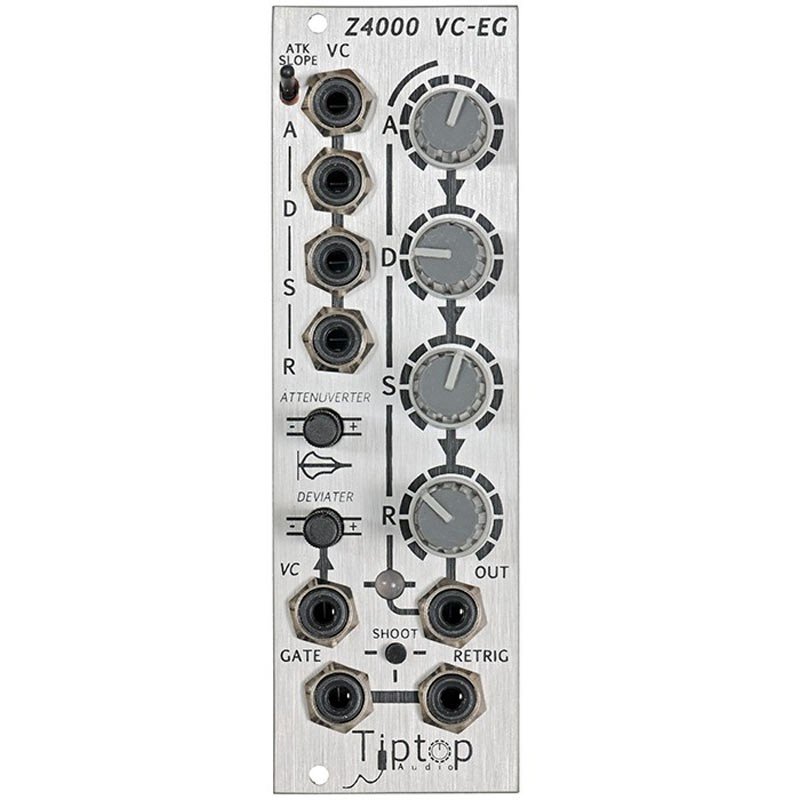

TIPTOP AUDIO Z-4000 VC
Z-4000: a snappy voltage-controlled analog envelope generator with a built-in CV processor
