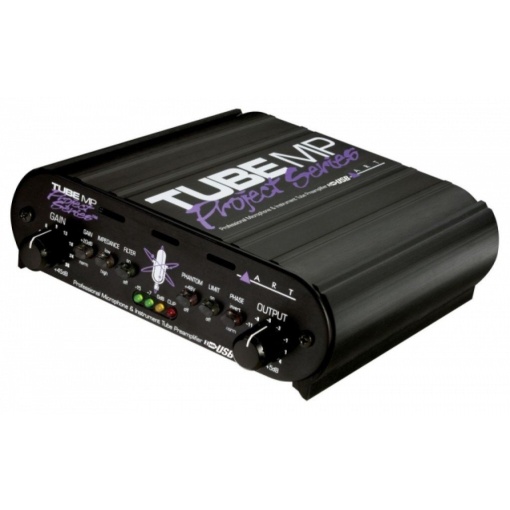

ART Tube MP – Project Series USB

Le Tube MP Project Series est un préamplificateur Micro, ligne et instrument à tube (12AX7A). Dans un design compact, les unités peuvent être facilement empliées, ce préampli 2 canaux dispose d’une alimentation fantôme, une invertion de phase, un filtre passe-haut. Se connecte à un MAC ou PC via le port USB 1.1
Frequency Response: 10Hz – 40kHz ( 0, -1dB)
Dynamic Range: >100dB (20Hz to 20kHz)THD: <0.05% (typical)CMRR: >60dB (typical)Equivalent Input Noise: -130dB (XLR to XLR ‘A’ weighted)Maximum Input Level: 16dBu (XLR), 17dBu (1/4″)Maximum Output Level: 26dBu (XLR), 20dBu (1/4″)Input Connections: 1″ unbalanced (1meg Ohm), XLR balancedOutput Connection: 1″ unbalanced (600 Ohm), XLR balanced (<300 Ohm)Maximum Gain: 70dB (XLR to XLR), 50dB (1/4″ to XLR)Input Gain Switch: 20dBXLR Input Impedance: 4.7k Ohms / 600 Ohms, Switch selectableHigh Pass Filter: -3dB @ 40Hz, Switch selectableOutput Phase: Normal / Invert, Switch selectableOutput Limiter Type: Fast FET limiter, >20dB range, ( 6dBu XLR, 0dBu 1″)A/D: 16 Bit, 44.1kHz or 48kHz, USB selectable from computer0.4 ms A/D latency @ 44.1kHzComputer Interface: Fully compliant with USB 1.1 specificationWindows 98SE or newer, Mac OS9.1 or newerUSB Power Requirements: 50mA typical from USB busPhantom Power: 48V DC, Filtered, Current limitedSignal Metering: Precise LED array, Fast attack, Musical release 30dB range, -15dB, -7dB, 0dB, Clip ( 15dB)Tube Type: 12AX7A hand selectedChassis Type: All aluminum black anodized with integral rubber sidesPower Requirements: 9 to 10 Volts AC @ 700 mA (typical)Dimensions: 1.75″H x 5.9″W x 6.5″D (44.5mm x 150mm x 165mm)Weight: 2.5 lbs. (1.14 kg)Note: 0dBu = 0.775Vrms
