Erica Synths Bassline
Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads.
CHF 335.00

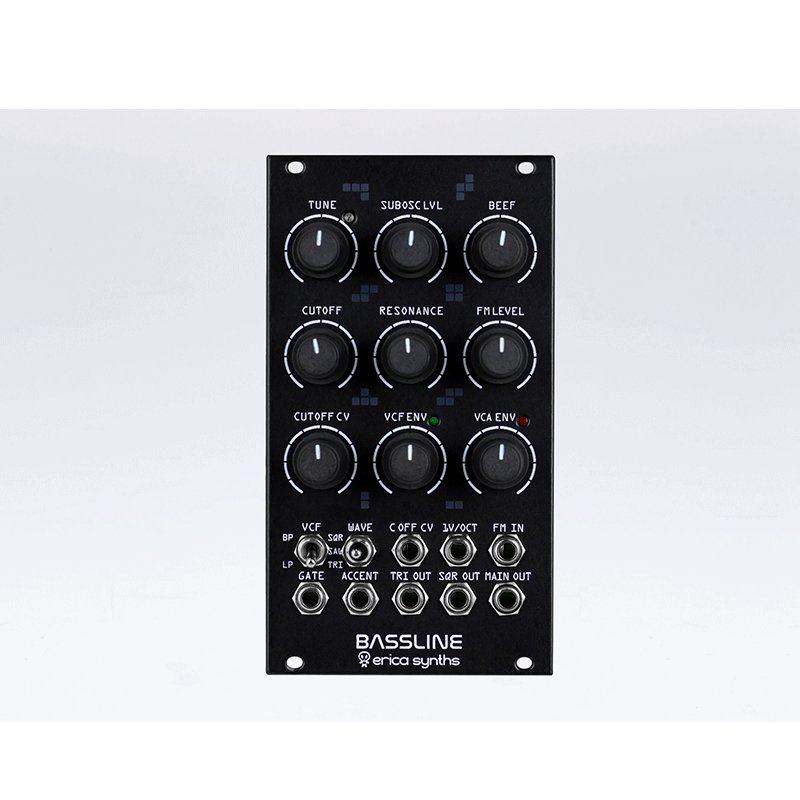

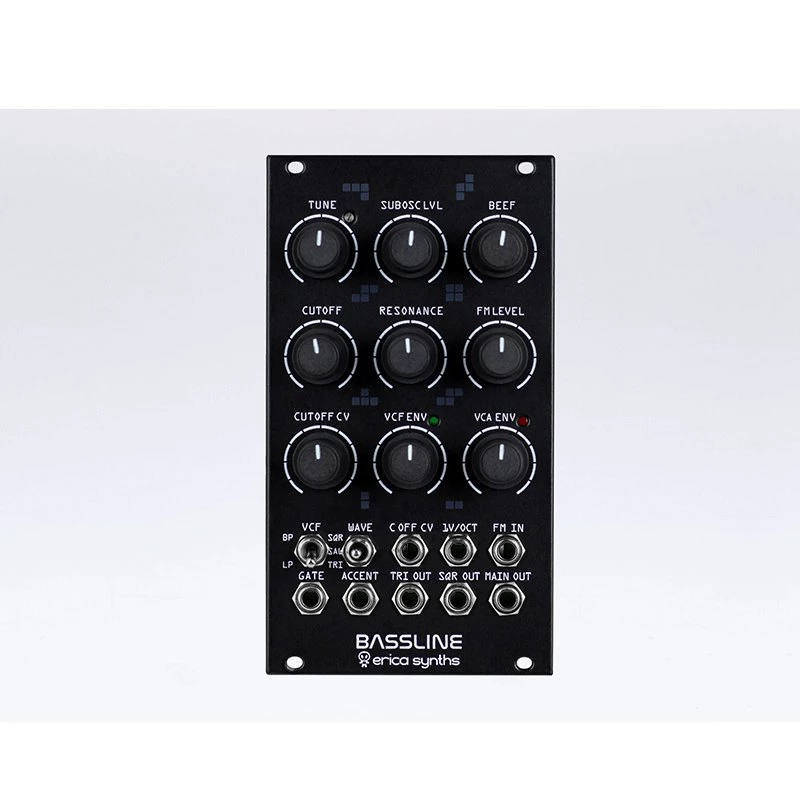

Erica Synths Bassline
Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads. It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features – transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.
Features
Fully analogue circuit
Great 1V/oct tracking
Simultaneous Triangle, Square and Master outputs
Accent input
Transistor-based suboscillator
BBD-based VCO detune emulation
Integrated VCF and VCA decay envelopes
LP/BP VCF
External VCO FM and VCF cutoff CV inputs
Pitch range C0-C8
Audio output level -5… 5V
CV level (full span) -5V- 5V
Power consumption 110mA, -70mA
Module width 14HP
Module depth 35mm
