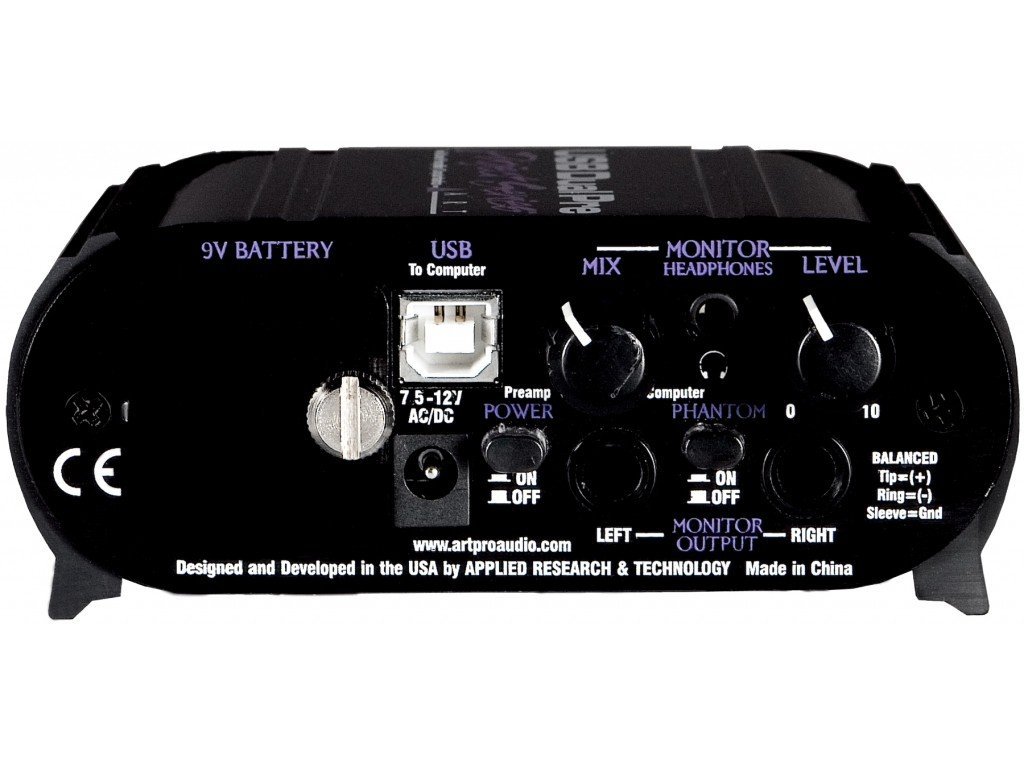

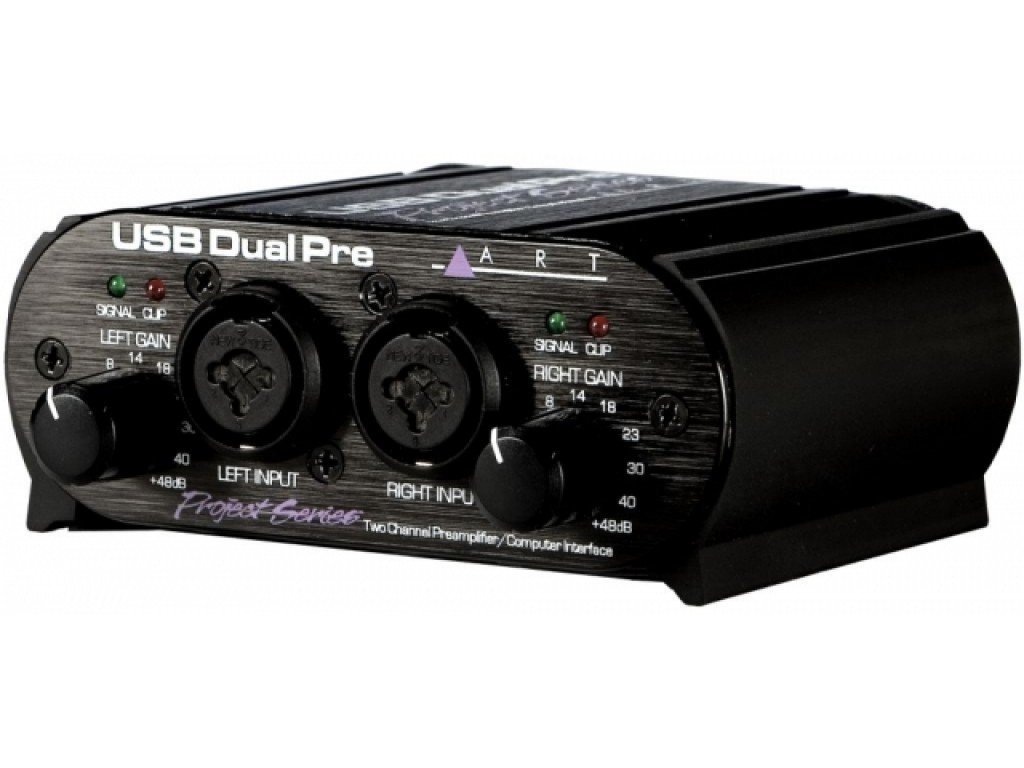

ART USB Dual Pre

L’USB Dual Pre, est un préampli ainsi qu’une carte d’acquisition en USB possédant 2 canaux. Fonctionne avec MAC et PC, (iPad via adaptateur)

Frequency Response: 20 Hz – 20 kHz ( 0, -1 dB)
THD: <0.01% @ 1 kHzCMRR: >60 dBChannel Separation: >75 dBSignal to Noise Ratio: >90 dB (Ref 0 dBu)Equivalent Input Noise: -120 dBu typical (XLR balanced, gain @ maximum)Input Impedance: >300k Ohms 1/4-inch input, >4k Ohms XLR inputOutput Impedance: 600 Ohms (balanced 1/4-inch), 50 Ohms (headphone 1/8-inch)Maximum Signal Level: 6 dBu in, 10 dBu out (balanced), 4 dBu out (single ended)Maximum Gain: 48 dB (balanced in-out)Phantom Power: Switch selectable, 48Volts DC, filtered, current limitedInput Connections: XLR / 1/4-inch TRS « Combo » jack balanced or unbalancedOutput Connection: 1/4-inch TRS balanced, 1/8-inch TRS headphone mini jackA/D-D/A: 16 Bit, 44.1 kHz or 48kHz, USB selectable from computer0.4 ms A/D latency @ 44.1 kHzComputer Interface: USB 1.1 compliant, Windows 98SE/ME/2000/XP/Vista32bit, Apple OS9.1/OSX computers with native USB supportChassis Type: All aluminum black anodized with integral rubber sidesPower Requirements: 7.5-12V AC or DC @ <150mA (external) or USB bus powered or 9V Battery @ 20mA typical, 50mA max. (phantom power)Dimensions: 1.75inch H x 4.6inch W x 4.7inch D (44.5mm x 117mm x 119mm)Weight: 1.3 lbs. (0.59 kg)Note: 0 dBu = 0.775Vrms
