Erica Synths Dual FX

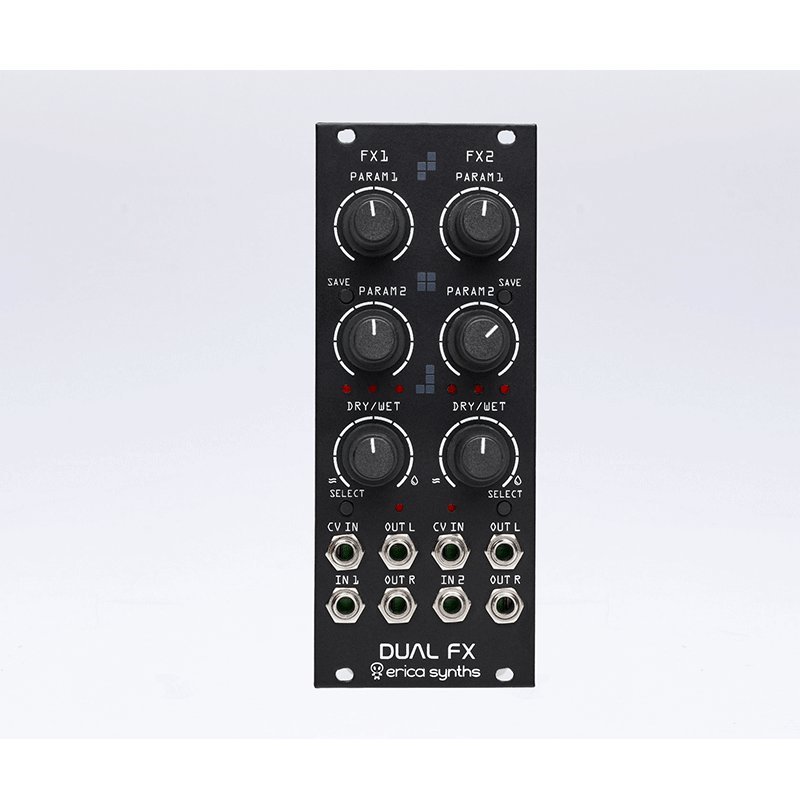

To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.
Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.
FX:
Mono delay
Stereo delay
Hi-pass delay
Big reverb
Saturated reverb
Stalker reverb
Ripper
Dual pitch shifter
Technical specs:
Audio output level -5… 5V
CV level (full span) -5… 5V
Power consumption 118mA@ 12V, 61mA@-12V
Module width 10HP
Module depth 45mm
