4MS RCD Breakout

RCD Breakout (RCDBO)

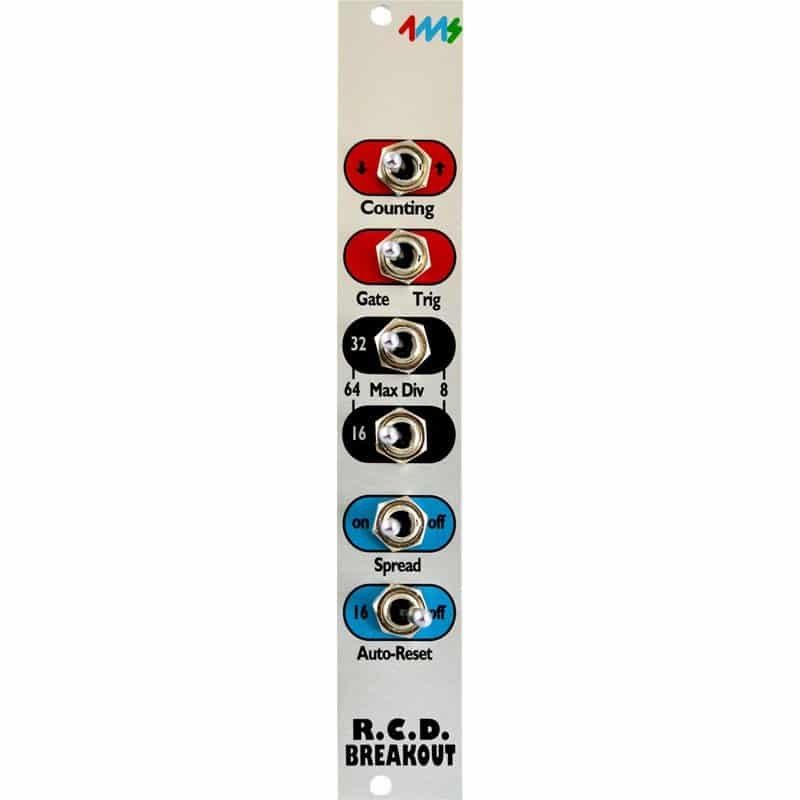

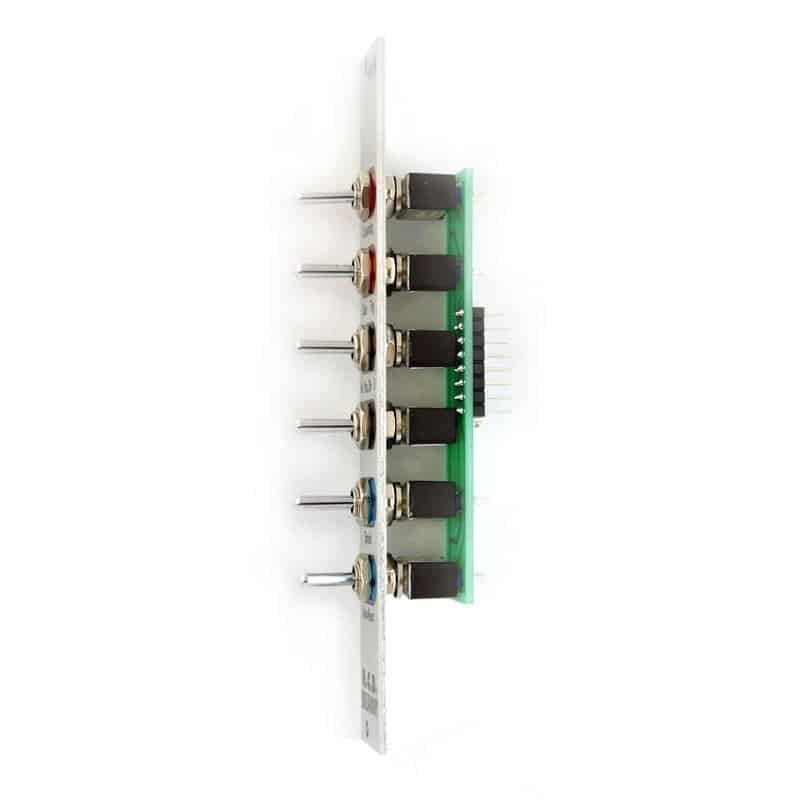

The RCD Breakout adds features to the Rotating Clock Divider module. Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.
Features
Divide-by-1 to Divide-by-64, on 8 output jacks
CV Rotate jack to shift divide-by amount on each jack
CV Reset jack to reset/re-sync all jacks
Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)
Jacks
Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
CV Rotate (0V to 5V input)
CV Reset (5V to 15V trigger)
Divided Clock Outputs (8 jacks):
Divide-by-(1 R)
Divide-by-(2 R)
Divide-by-(3 R)
Divide-by-(4 R)
Divide-by-(5 R)
Divide-by-(6 R)
Divide-by-(7 R)
Divide-by-(8 R)

…where R is the CV Rotation.
Selectable Gate/Trigger mode:
Selectable Divide range up to Divide-by-64:Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
Selectable Auto-reset:Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more « dance-able » even when using the « weird » clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

Module size: The RCD is 4HP and 48mm (1.85″)
Power consumption:
12V rail: __mA
5V rail: not used
-12V rail: not used
