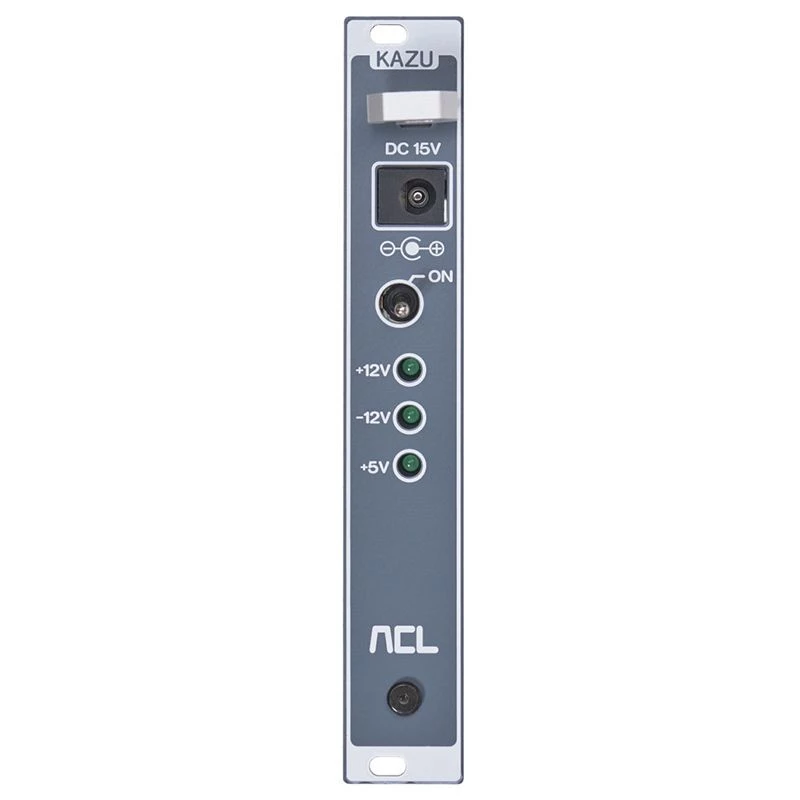

ACL – PSU-KAZU V2

Specifications:
12 V: Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.
-12 V: Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.
5 V: Unregulated, filtered, less than 40 mV fluctuations and noise at full capacity, typically 30 mV.
Maximum voltage output:
1000 mA at 12 V
1000 mA at -12 V
500 mA at 5 V
An external power supply (15 V DC, tip positive, ring negative) is included in delivery.
A Flying Bus Board is not included. We recommend using KAZU with the EVE-1 Bus Board.
CONNECTORS
Input for the external power supply.
DIMENSIONS
3U Eurorack module, 4 HP wide
